| Indoor Model | Unit | MUB-60CRN | |
| Outdoor Model | MUB-60CRN | ||

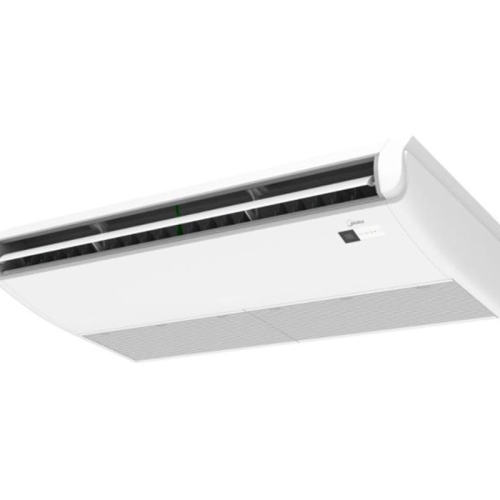

| Type (wall type or others) | Ceiling Type | ||
| Type (On-Off/Inverter) | On-Off | ||
| Type (Cooling only/Heating-Cooling) | Cooling only | ||
| Power Supply | V-Ph-Hz | 380-410V, 3Ph, 50Hz | |
| Gas Type | R410 | ||
| Gas Amount(Kg) | Kg | 3.4 | |
| Cooling | Capacity (Btu/H) | (Btu/H) | 60000 |
| Standard Current (A) | A | 10.5 | |
| Standard Input (W) | W | 6500 | |
| Rated Current (Max Current) | A | 13 | |
| Rated Input (Max Input) | W | 8500 | |
| EER | W/W | 2.65 | |
| EER | (BTU/Hr)/W | 9.23 | |
| SEER | W/W | N/A | |
| Star Rating | Star | 3 | |
| Heating | Capacity (Btu/H) | (Btu/H) | N/A |
| Standard Current (A) | A | N/A | |
| Standard Input (W) | W | N/A | |
| Rated Current (Max Current) | A | N/A | |
| Rated Input (Max Input) | W | N/A | |
| EER | W/W | N/A | |
| EER | (BTU/Hr)/W | N/A | |
| SEER | W/W | N/A | |
| Star Rating | Star | N/A | |
| Controller type | Remote/wire | Remote | |
| Indoor Net Weight (KG) | Kg | 43.46 | |
| Indoor Gross Weight (KG) | Kg | 49.58 | |
| Indoor Body Size (mm) | mm | 1600×690×235 | |
| Indoor Packing Size (mm) | mm | 1680×770×325 | |
| Outdoor Net Weight (KG) | Kg | 96.2 | |
| Outdoor Gross Weight (KG) | Kg | 106.8 | |
| Outdoor Body Size (mm) | mm | 980X410X1210 | |
| Outdoor Packing Size (mm) | mm | 1032X470X1280 | |
| Compressor | Type | Rotary | |
| Compressor | Brand | LAMDA | |
| Suction pressure (Mpa) | Mpa | 4.2 | |
| Discharge Pressure (Mpa) | Mpa | 1.5 | |
| Operation temperature | 0C | 16-32 | |
| Pipe Size (Liquie side, Gas side) | Inch | 3/8, 3/4 | |
| Drain Pipe size | Inch (mm) | OD25.4 | |
| Indoor Air flow(Hi/Mi/Lo) | m3/h | 2000/1800/1250 | |
| IDU Noise level ,dB (Hi/Mi/Lo) | dB | 52/47/44 | |
| ODU Noise level ,dB (Hi/Mi/Lo) | dB | 59.5 | |
| Remarks: The above design and specifications are subject to change without prior notice for product improvement. |
